Dual AC Motors with Max EQUIV. CFM: 850 and 39dB Min. Noise Level
Slant design for exhaust extraction

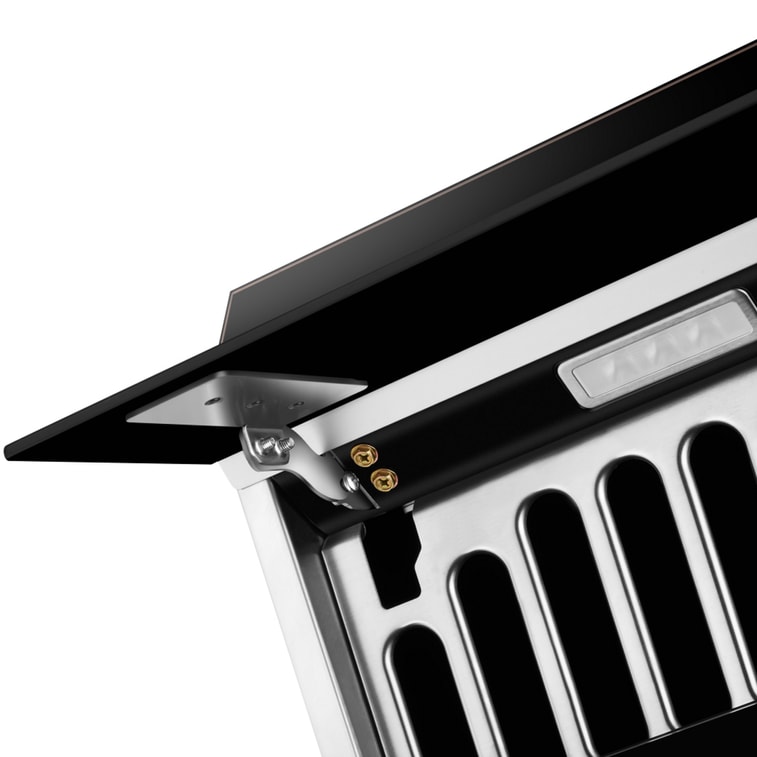

90° Fixed Open Capture Shield
Covers 6ft² of Cooking Area (5-6 Burners)
95% Grease Separation Rate; 98% Smell Reduction Rate
FOTILE Slant Vent Series, 30 In. Wall Mount Ducted Hood with Dual-Centrifuge Fan System, Capable of normally producing 530 CFMs, with the WhisPower motor Technology and Capture-Shield extraction, it can achieve a maximum power of 850 CFM and lowest noise level 39dB. With a 90 degree Open Fume Baffle Plate it will open to a 90 degree angle capturing smoke and fumes before they escape. A large 6 sf coverage area easily covers all 4 / 5 burners on your cooktop guiding smoke upwards and creating a barrier to prevent you from breathing in harmful smoke and grease. Mechanical buttons with Memory Function keep your preference for air volume. Color in Onyx Black
| Specification | ||
| Model | JQG7522 | |
| Certification | ETL,HVI | |
| Size (inch) | Width | 29 7/8 |
| Depth | 18 1/4 | |
| Height | 17 7/16 - 46 7/16 | |
| Power Supply | 120V/60HZ | |
| Max Static Pressure(Pa) | 400 | |
| No. of Speed | 3 | |
| Min Noise Level(dB) | 39/49/54 | |
| Illumination(W) | 3W × 2 (LED) | |
| Motor Power | 256W | |
| Motor | Dual AC Motors | |
| Oil Cup | One Oversized Oil Cup | |
| Oil Filter | Removable & Dishwasher Free | |
| Capture Shield | Fixed Open | |
| Control Type | Button | |
| Oil Filtration Rate | 95% | |
| Smell Reduction Rate | 98% | |
| Installation | Under Cabinet/Wall Mount | |
| Net Weight (lb) | 58.2 | |
| Gross Weight (lb) | 75.8 | |
| Packing-Box Size(WxDxH) (inch) | 33 7/8 × 22 11/16 × 24 1/16 | |
| Brand | FOTILE |
| Brand Origin | China |
| Net Content | 1piece |
| Color | Black |
Product packaging, specifications and price are subject to change without notice. All information about the products on our website is provided for information purposes only. Please always read labels, warnings and directions provided with the product before use.
