Dual AC Motors ensures strong power and fluent extraction.

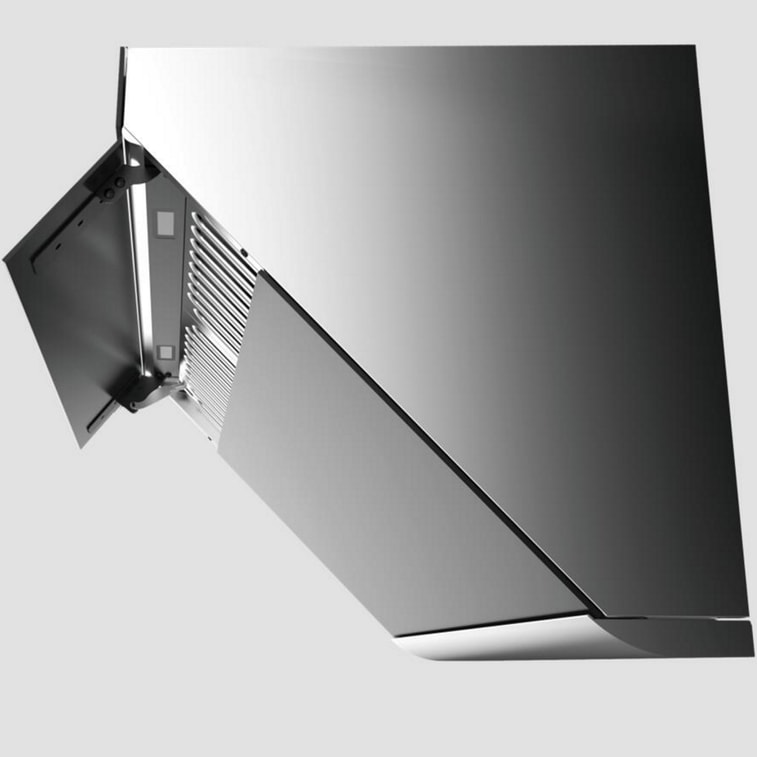

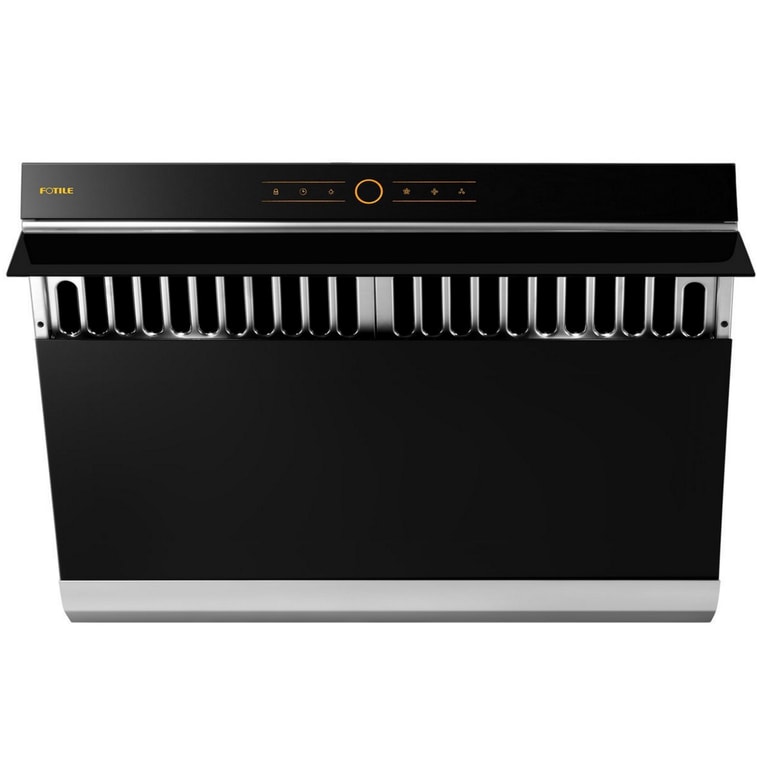

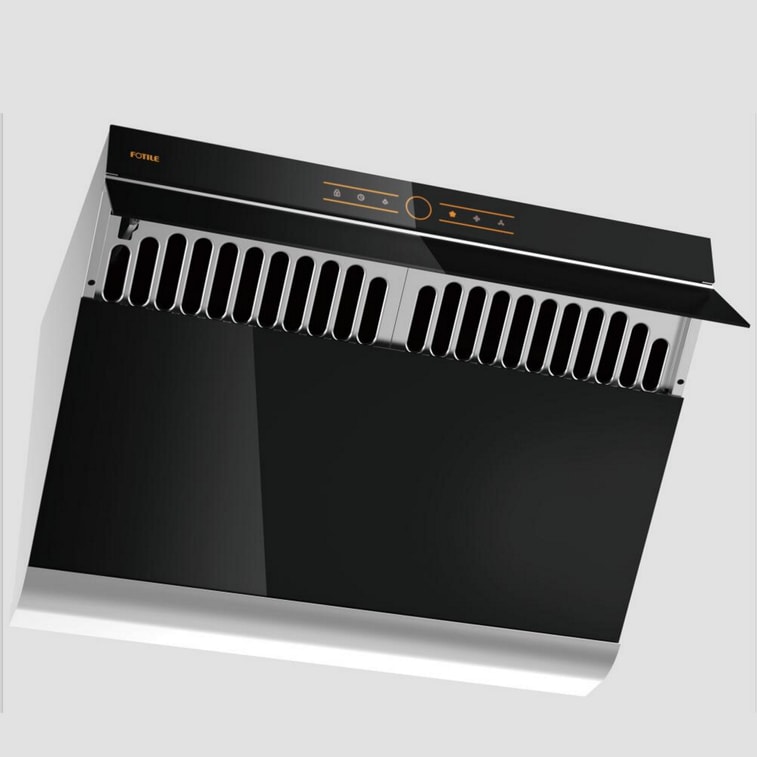

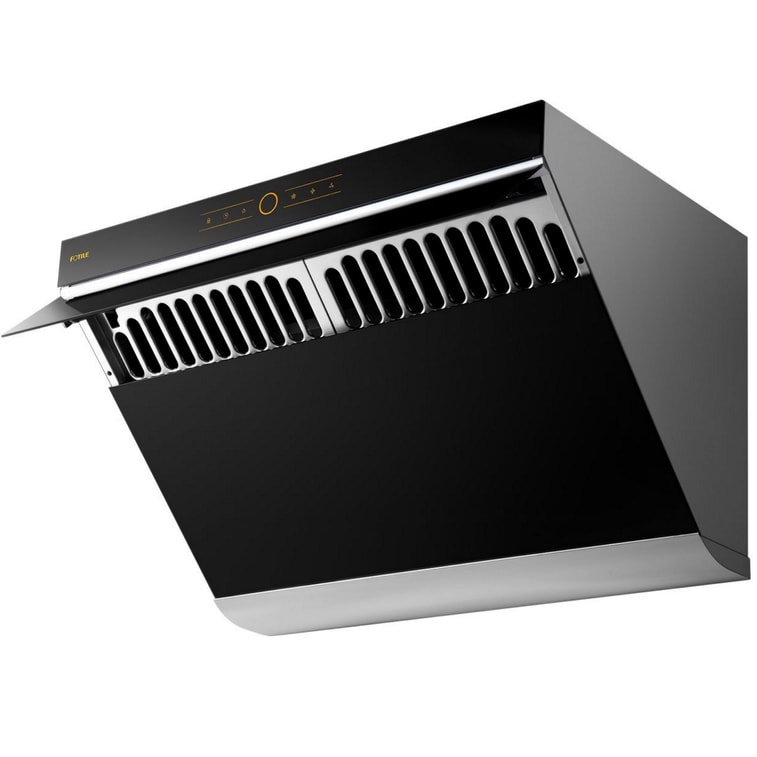

90° Automatic Open Capture Shield
Covers 6ft² of Cooking Area (5-6 Burners)
Slant design for exhaust extraction
Max EQUIV. CFM: 850
39dB Min. Noise Level

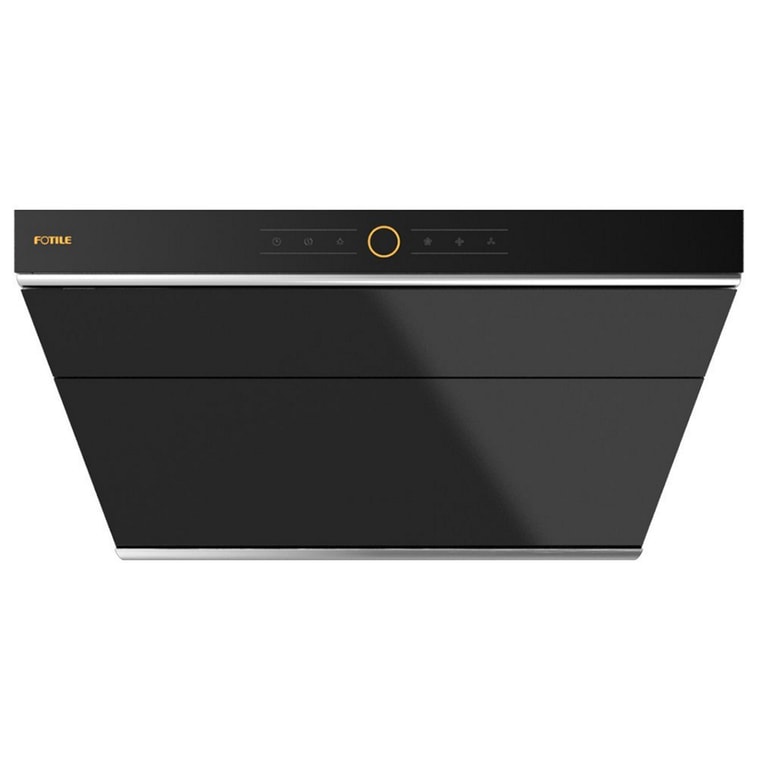

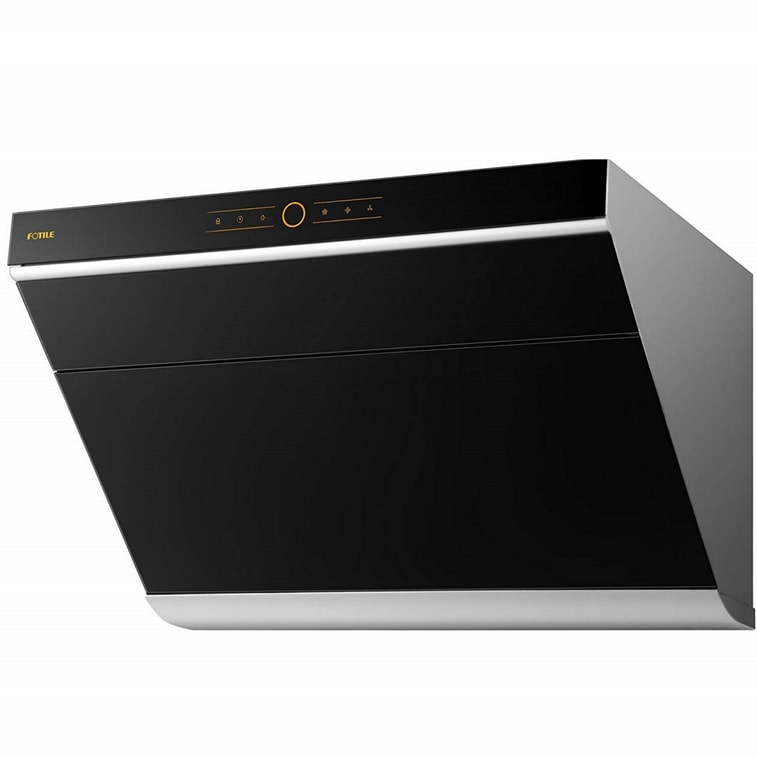

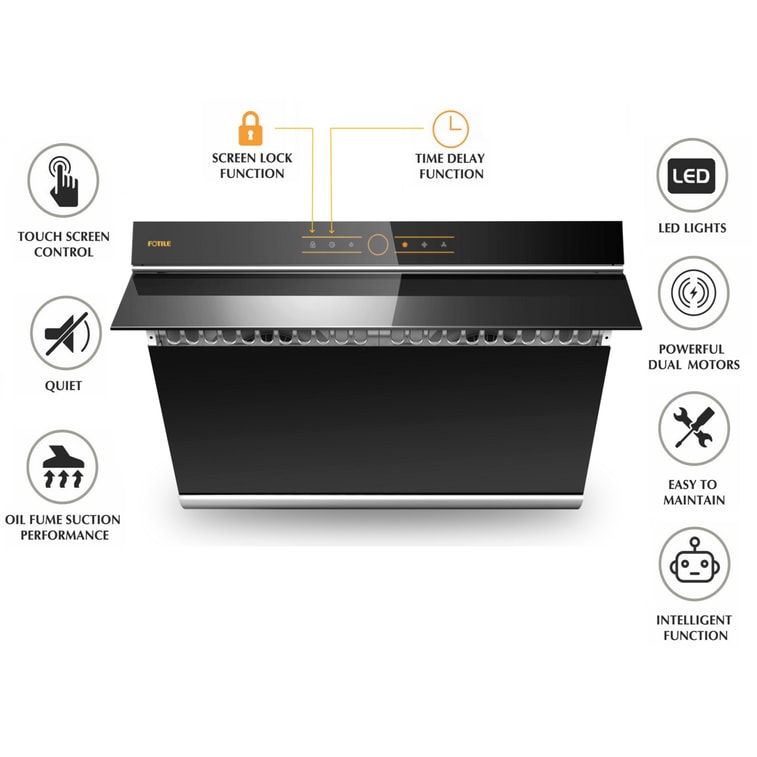

FOTILE Slant Vent Series, 30 In. wall mount/under-cabinet side-draft design range hood with 850 CFM, it not only provides excellent performance, but looks great as well. With an automatic open baffle plate when the unit is powered on, it will open to a 90 degree angle capturing smoke and fumes before they escape. A large 6sf coverage area easily covers all 4 / 5 burners on your cooktop guiding smoke upwards and creating a barrier to prevent you from breathing in harmful smoke and grease. The JQG7501 is capable of normally producing 530 CFMs, with the WhisPower motor Technology and Capture-Shield extraction, it can achieve a maximum power of 850 CFM and lowest noise level 39dB. An elegant Touch Screen control panel with a delay function that lets the hood work for 2 minutes after you are done cooking to ensure all the smoke and odors are removed from your kitchen. There is also a screen lock function that prevents the unit from mis operation while you are cleaning the unit. Color Onyx Black
| Specification: | ||
| Model | JQG7501 | |
| Certification | ETL, HVI | |

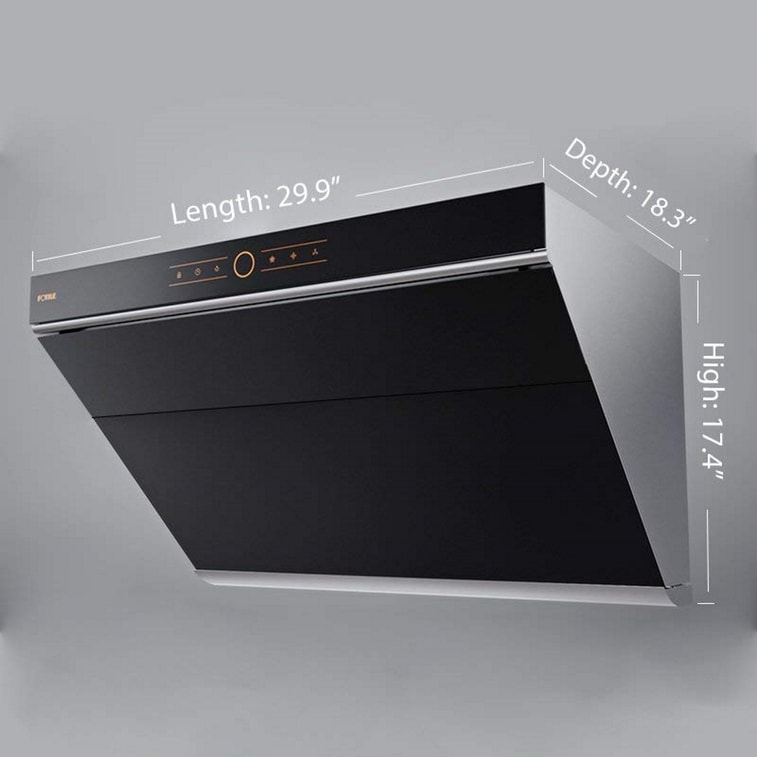

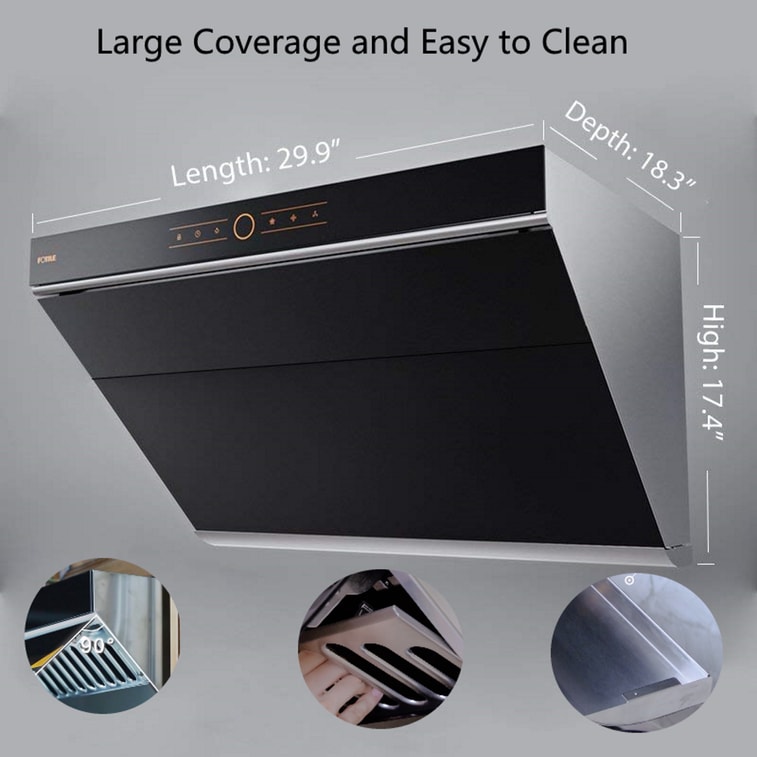

| Size (inch) | Width | 29 7/8 |
| Depth | 18 1/4 | |
| Height | 17 7/16 - 46 7/16 | |
| Power Supply | 120V/60HZ | |
| Max Static Pressure(Pa) | 400 | |
| No. of Speed | 3 | |
| Min Noise Level(dB) | 39/49/54 | |
| Illumination(W) | 3W × 2 (LED) | |
| Motor Power | 256W | |
| Motor | Dual AC Motors | |
| Oil Cup | One Oversized Oil Cup | |
| Oil Filter | Removable & Dishwasher Free | |
| Capture Shield | Auto | |
| Control Type | Touch | |
| Time Delay | 2min | |
| Screen Lock | Y | |
| Oil Filtration Rate | 95% | |
| Smell Reduction Rate | 98% | |
| Installation | Under Cabinet/Wall Mount | |
| Net Weight (lb) | 58.2 | |
| Gross Weight (lb) | 75.8 | |
| Packing-Box Size(WxDxH) (inch) | 33 7/8 × 22 11/16 × 24 1/16 | |
| Brand | FOTILE |
| Brand Origin | China |
| Net Content | 1piece |
| Color | Black |
